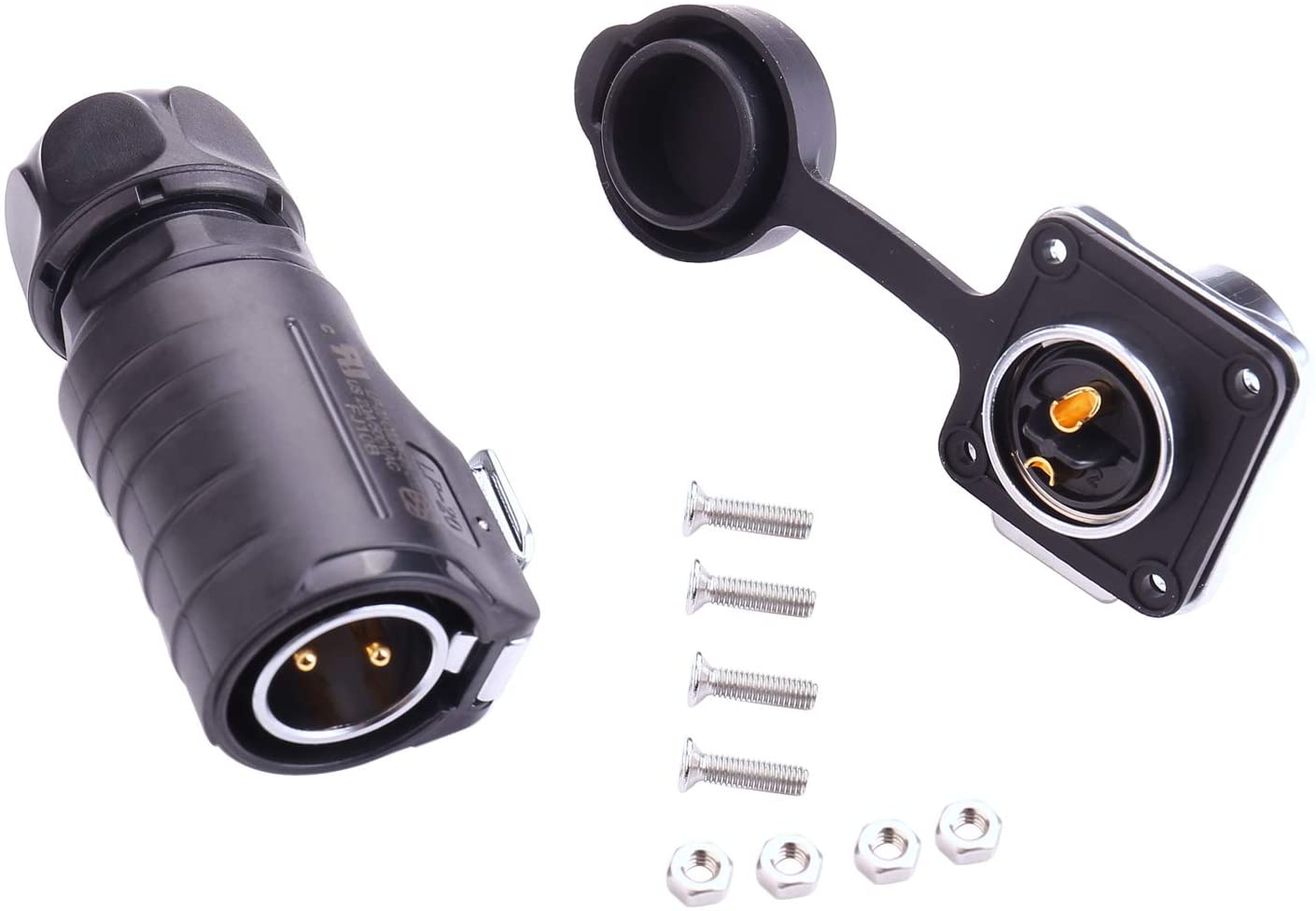

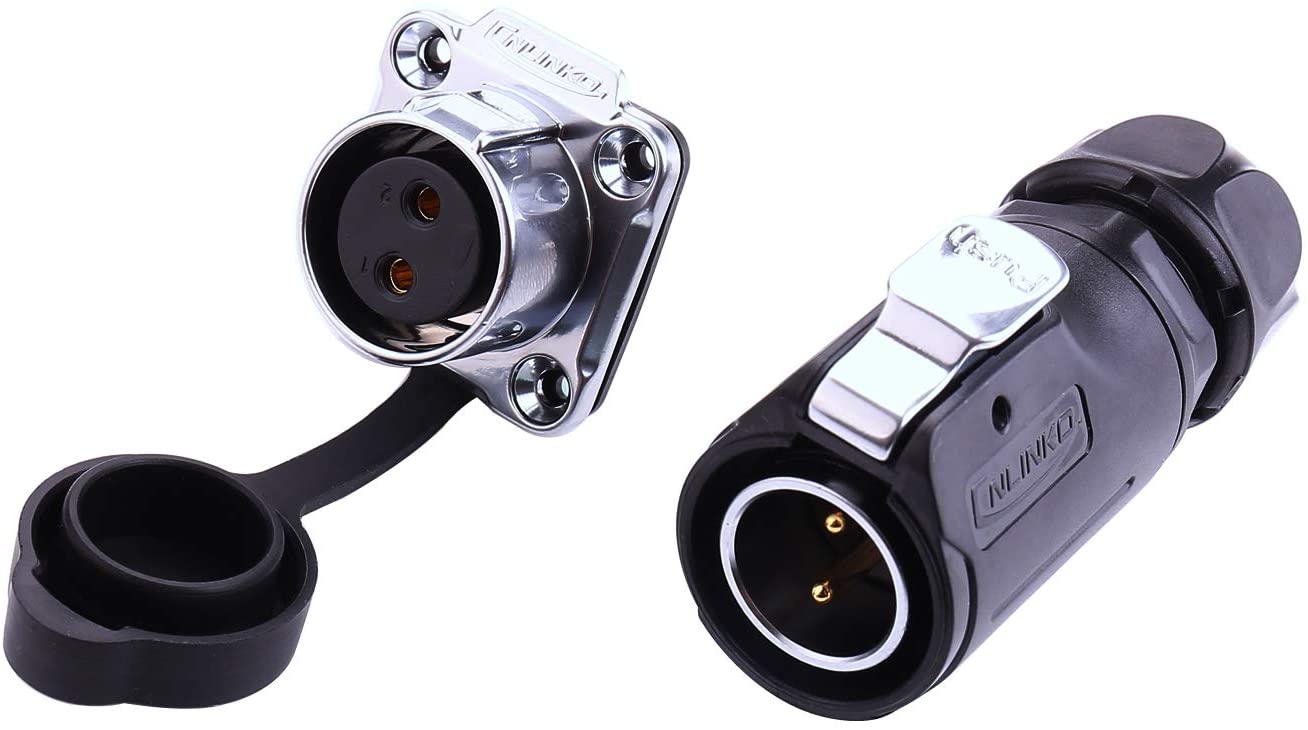

iGreely CNLINKO 2Pin Connector, Male Plug & Female Panel Mount Socket Waterproof IP67 Fit for Furrion RV Solar Port, Grand Design, Forrest River

  • $13.99
    Unit price per
  • Save $3.50


Size: 2 Pin

Note: The terminals are small, it's a little difficult to solder 12 or 10 gauge cable, but it's easy for 14 gauge.

Product Parameter

Wire specification2.5M㎡~5M㎡/14-12AWG

Line diameter range8㎜~12㎜

Diameter×numberΦ2.7╳4

Rated current(A)20A

Operation voltage(AC.V.RMS)500V

Contact resistance<1mΩ

Temperature rise20A per contact at 30℃,25A……40℃,30A……50℃.

Withstand voltage (AC.V)1minute2500V

Insulation resistance>500MΩ

Protection levelIP65/IP67

Mating cycle≥500 times

Working temperature-40℃~80℃

Connection modeQuick plug connection

Wiring modeWelding / Crimping

Material

Insulation componentsHigh-performance engineering plastics

HardwareZinc alloy(Nickel Plating)

PINCopper alloy | gold plated

Waterproof circleSilica gel

Flame retardant gradeUL94-V0
